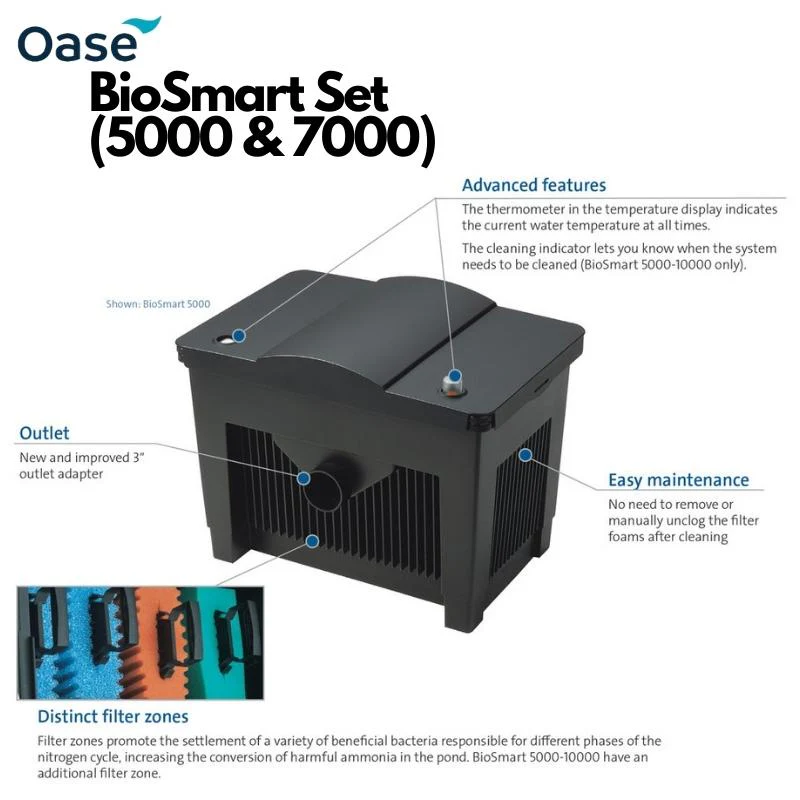

Key Features,

• Reliable and flexible implementation – entry-level flow-through filter
• Easy maintenance thanks to cleaning handles and bottom drain
• Pollutant level indicator and temperature indicator for convenient filter monitoring

Characteristics,

• Incl. OASE Clear Water Guarantee
• Oxygen enrichment through special water channelling
• Cleaning handles for convenient maintenance

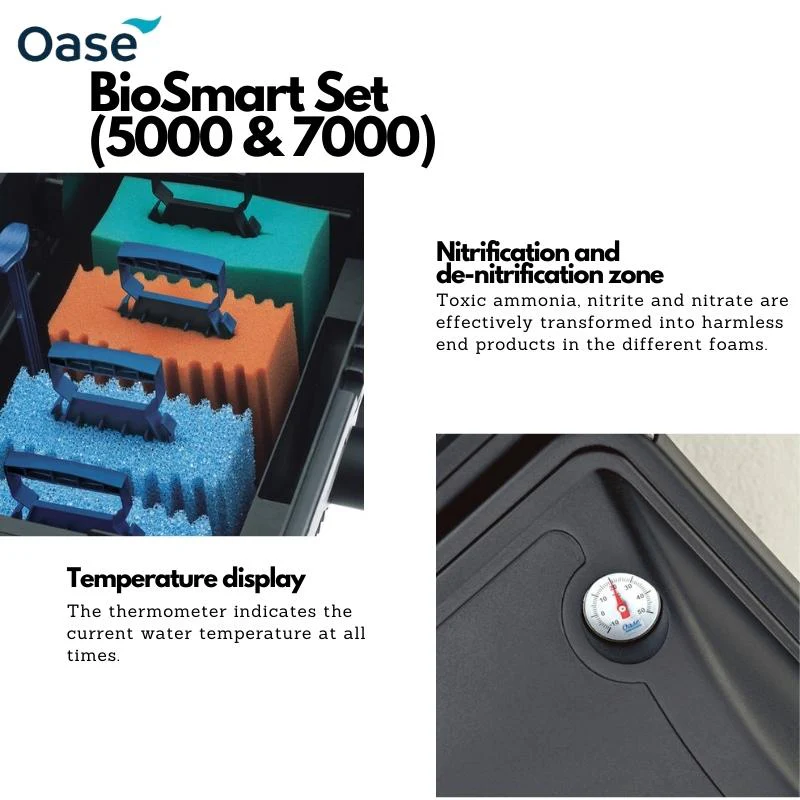

• Including displays for pollutant level and water temperature
• Sludge drain for easy removal of coarse debris
• Easy to conceal; the filter can be recessed into the ground to ⅓ of its height

• Suitable for ponds up to 5.0 m3

• Included in the scope of delivery: 3 m 3/4" (19 mm) hose and filter pump 1500: 25 W; 1500 l/h Qmax; 1.9 m Hmax
• Combination of mechanical biological cleaning and effective UVC technology
• Filters and pumps are optimally matched to each other

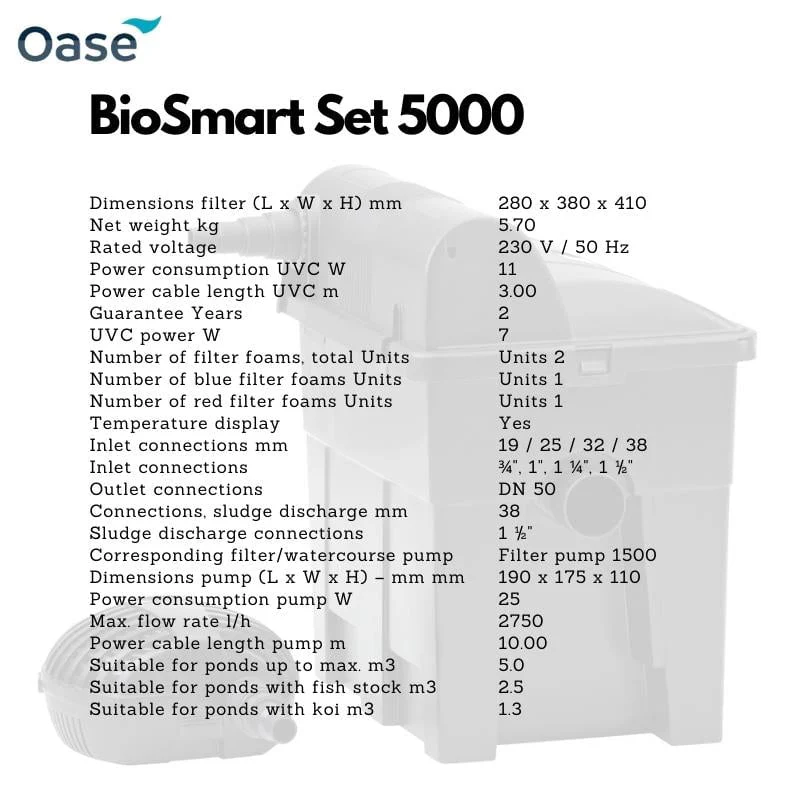

BioSmart Set 5000,

Dimensions filter (L x W x H) mm           280 x 380 x 410
Net weight kg           5.70
Rated voltage           230 V / 50 Hz
Power consumption UVC W           11
Power cable length UVC m           3.00
Guarantee Years           2
UVC power W           7
Number of filter foams, total Units           2
Number of blue filter foams Units           1
Number of red filter foams Units           1
Temperature display           Yes
Inlet connections mm           19 / 25 / 32 / 38
Inlet connections           ¾", 1", 1 ¼", 1 ½"
Outlet connections DN           50
Connections, sludge discharge mm           38
Sludge discharge connections           1 ½"
Corresponding filter/watercourse pump Filter pump           1500
Dimensions pump (L x W x H) – mm mm           190 x 175 x 110
Power consumption pump W           25
Max. flow rate l/h           2750
Power cable length pump m           10.00
Suitable for ponds up to max. m3           5.0
Suitable for ponds with fish stock m3           2.5
Suitable for ponds with koi m3           1.3

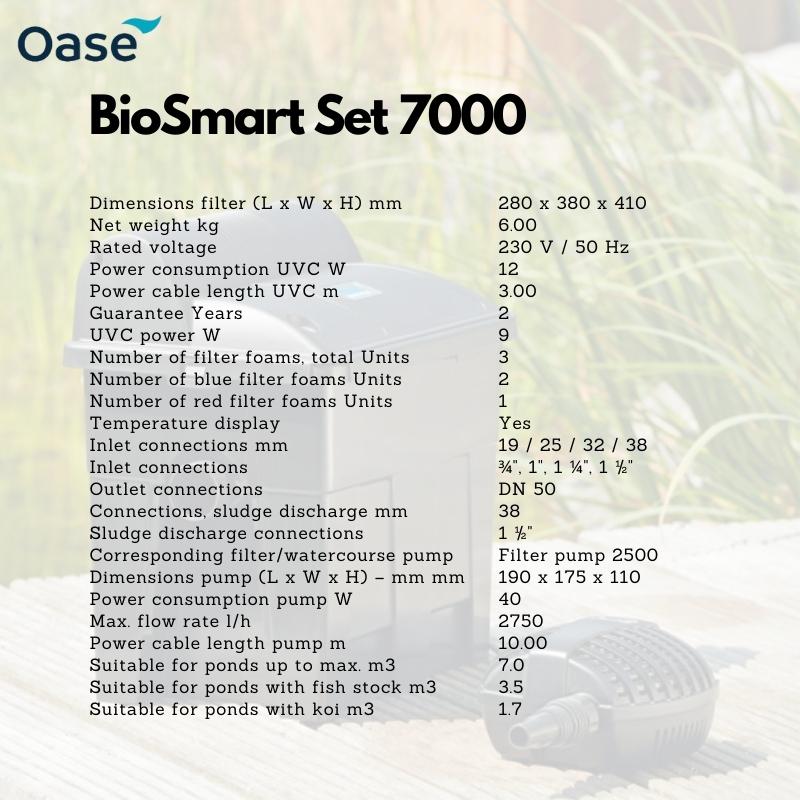

BioSmart Set 7000,

Dimensions filter (L x W x H) mm           280 x 380 x 410
Net weight kg           6.00
Rated voltage           230 V / 50 Hz
Power consumption UVC W           12
Power cable length UVC m           3.00
Guarantee Years           2
UVC power W           9
Number of filter foams, total Units           3
Number of blue filter foams Units           2
Number of red filter foams Units           1
Temperature display           Yes
Inlet connections mm           19 / 25 / 32 / 38
Inlet connections           ¾", 1", 1 ¼", 1 ½"
Outlet connections DN           50
Connections, sludge discharge mm           38
Sludge discharge connections           1 ½"
Corresponding filter/watercourse pump Filter pump           2500
Dimensions pump (L x W x H) – mm mm           190 x 175 x 110
Power consumption pump W 40
Max. flow rate l/h 2750
Power cable length pump m 10.00
Suitable for ponds up to max. m3 7.0
Suitable for ponds with fish stock m3 3.5
Suitable for ponds with koi m3 1.7
