Key Features,

• Clear water guaranteed through the ideal combination of filter, pump and UVC technology
• Easy to maintain with patented cleaning function in the lid

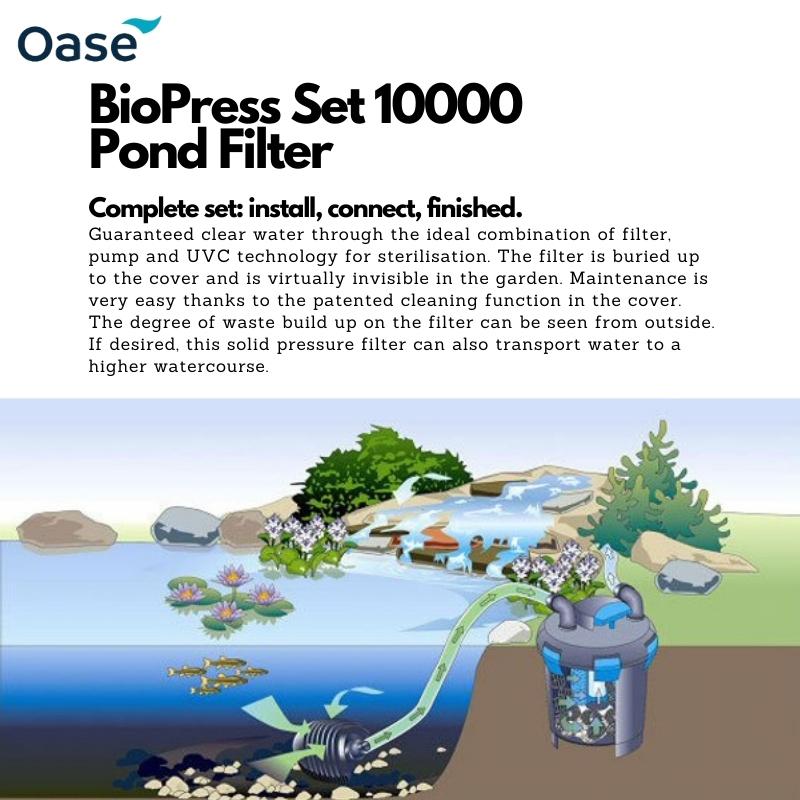

• Perfect to blend in to the surroundings as can be buried up to the lid

Characteristics,

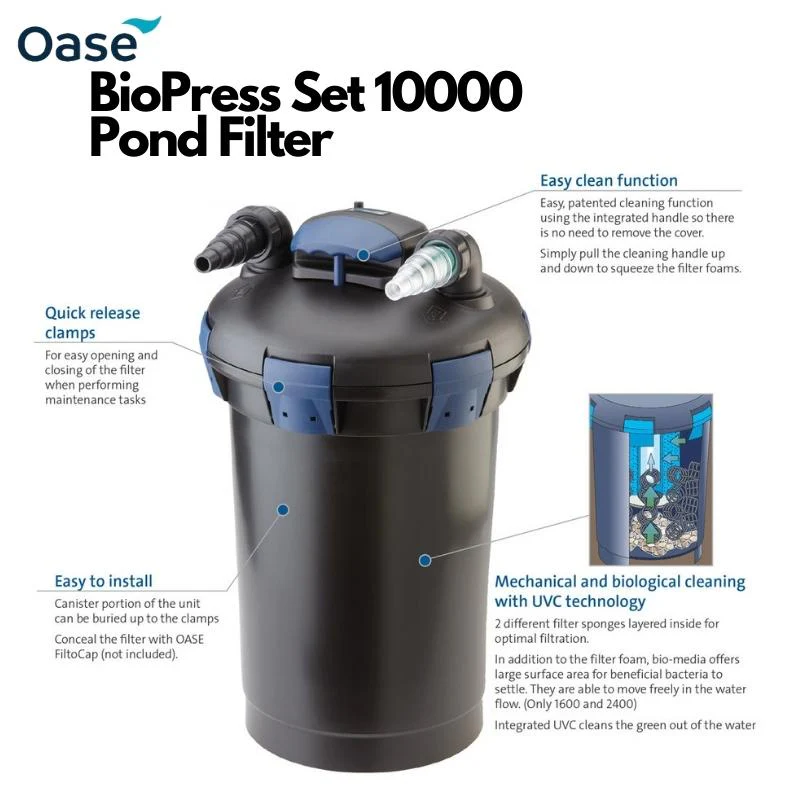

• CLEAN: Effective combination of mechanical/biological cleaning and effective UVC technology
• GUARANTEED: Includes OASE clear water guarantee
• THE ONLY WAY IS UP: Ideal for feeding elevated watercourses

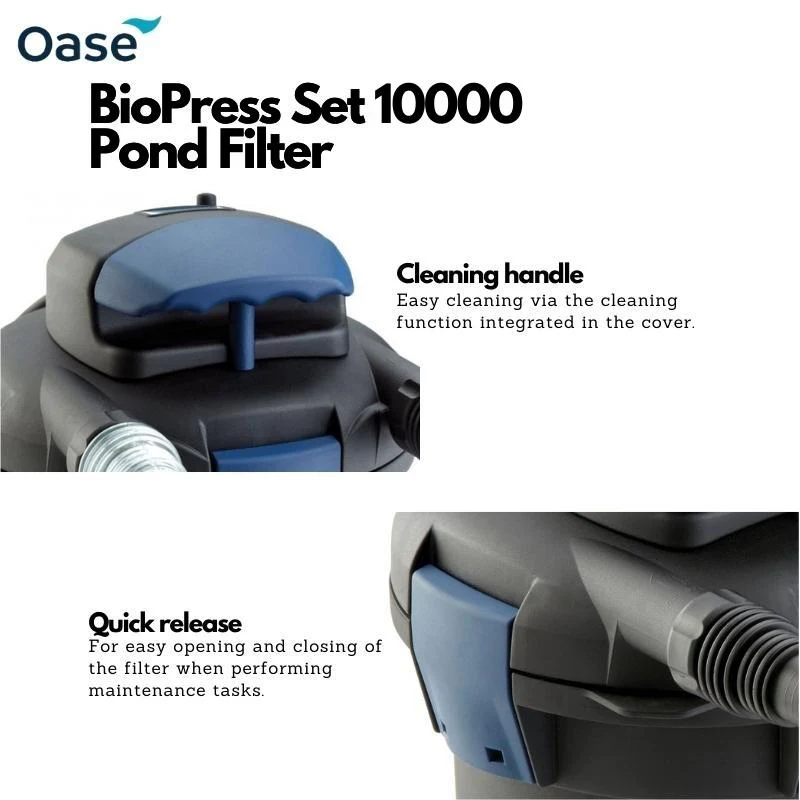

• HATS OFF: Easier filter cleaning thanks to the patented cleaning function integrated in the lid
• FAST & EASY: With all the required hose connections – for quick and easy assembly

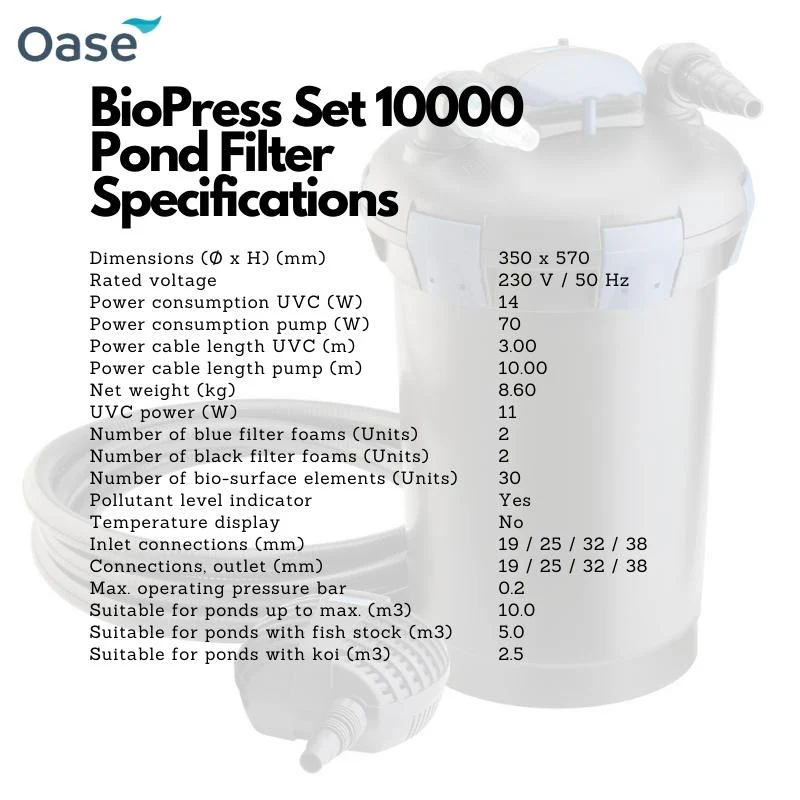

Specifications,

Dimensions (Ø x H) mm  350 x 570
Rated voltage           230 V / 50 Hz
Power consumption UVC W           14
Power consumption pump W           70
Power cable length UVC m           3.00
Power cable length pump m           10.00
Net weight kg           8.60
Guarantee Years           2
UVC power W           11
Number of blue filter foams Units           2
Number of black filter foams Units           2
Number of bio-surface elements Units           30
Pollutant level indicator           Yes
Temperature display           No
Inlet connections mm           19 / 25 / 32 / 38
Inlet connections           ¾", 1", 1 ¼", 1 ½"
Connections, outlet mm           19 / 25 / 32 / 38
Outlet connections           ¾", 1", 1 ¼", 1 ½"
Max. operating pressure ba          r 0.2
Suitable for ponds up to max.           10000L
Suitable for ponds with fish stock           5000L
Suitable for ponds with koi           2500L
