OASE AquaMax Eco Premium

The AquaMax Eco Premium pumps are equipped with the OASE Environmental Function Control , which offers reliable protection against dry running or blocking. The integrated OASE Control interface allows the pumps to be controlled and regulated digitally. With the necessary accessories such as the Garden Controller Cloud or the InScenio FM-Master Cloud as well as other adapters and cables, you can fully exploit the advantages of the OASE Control functions. The AquaMax Eco Premium series is also designed for dry installation , for example in a pump chamber. With the SFC switch on models 5000-21000, water flow and head  are optimized and reduced by up to 50% when the SFC function is switched on. Experience the improved performance and efficiency of the AquaMax Eco Premium models and make caring for your garden water easier.

AquaMax Eco Premium Product Information

Understand more about Core 6 technology in Oase product

Features:

• Increased efficiency through more economical consumption
• Even smoother and quieter
• Smart technology for digital control
• CORE 6 Technology

Characteristic:

MORE EFFICIENT: Improved efficiency for all six AquaMax Eco Premium 5000–21000 models
MORE ECONOMICAL: Lower power consumption all year round thanks to the increased energy efficiency of the motors
QUIETER: Garden water features are more peaceful thanks to the now even quieter AquaMax Eco Premium pumps
STOPS IN TIME: Reliable protection against blockages and dry running thanks to the built-in OASE Environmental Function Control
SMART: OASE Control interface for digital monitoring and regulation of the pump.
REQUIREMENTS-BASED: Seasonal Flow Control – now available on all models – ensures greater efficiency by through temperature-adjusted flow rates
LOW TEMPERATURE-RESISTANT: Frost-proof down to -20°C
APP-COMPATIBLE: Simply download the OASE Control app (from the App Store or via Play Store) and you're ready to go|

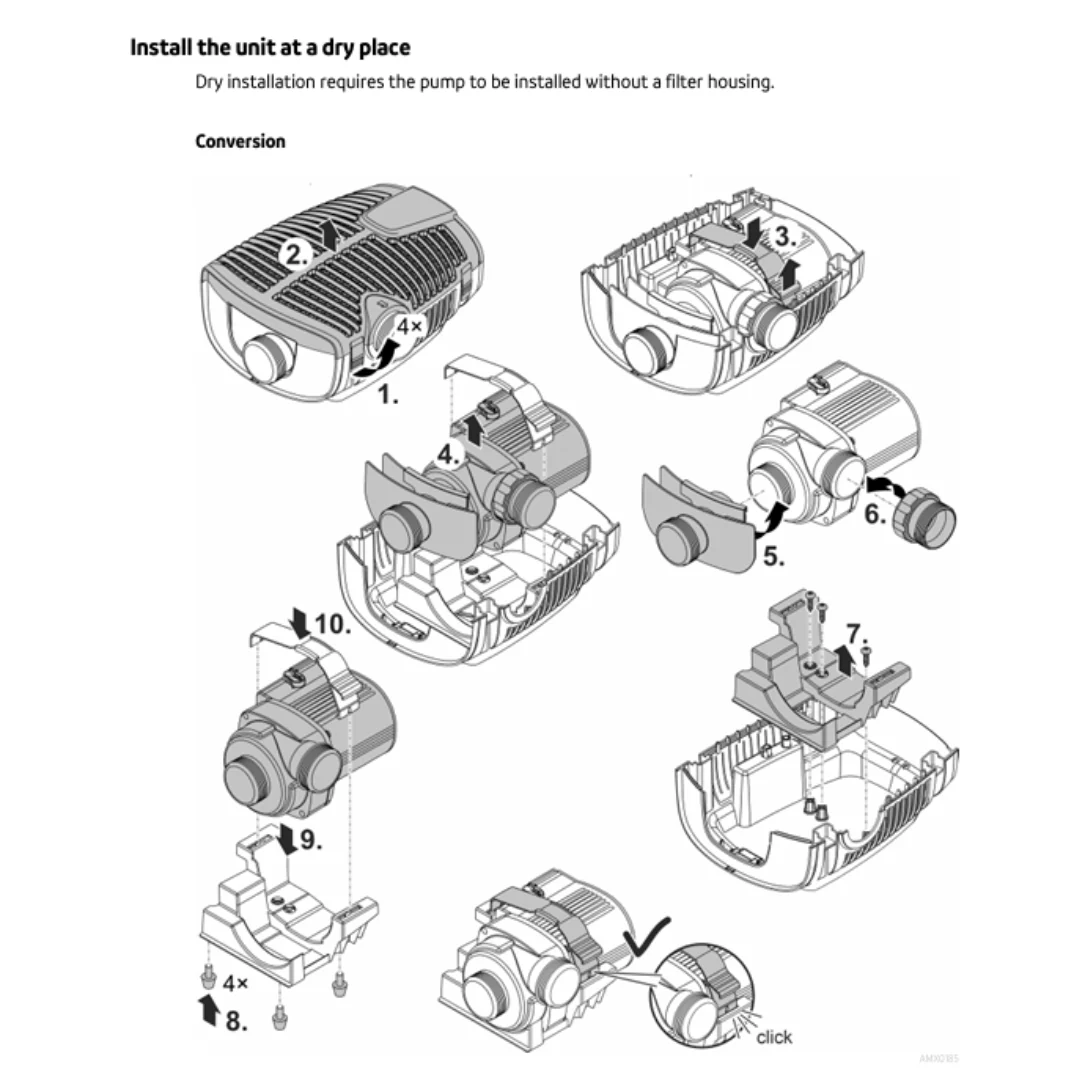

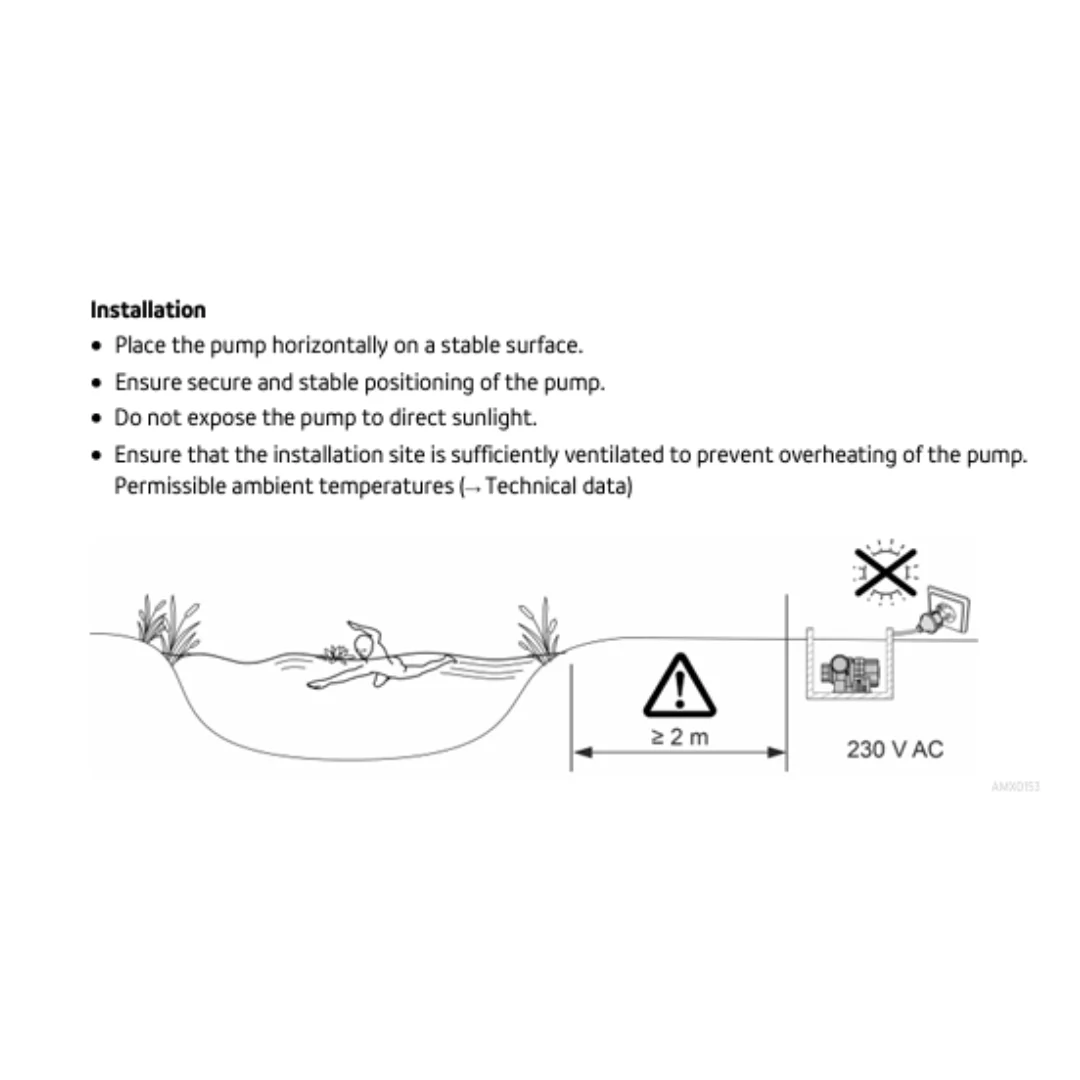

VERSATILE: You can place this pump in dry conditions or submerged underwater|
LARGE SOLIDS HANDLING: Reliable conveying of plant parts or fish faeces up to a size of 11 mm
MADE IN GERMANY: Precise and reliable engineering skills at a particularly high level of quality



Technical Data:

AquaMax Eco Premium 5000

Dimensions (L x W x H)    340 x 275 x 160mm
Rated voltage    220 - 240 V / 50/60 Hz
Power consumption    10 - 35w
Power cable length    10.00m
Net weight    6.20kg
Guarantee    3 years
Max. flow rate    83l/min
Max. flow rate    5000l/h
Max. head height, metres    3.50m
Pressure-side connection    G 2
Suction-side connection    G 2
Hose connection    25 / 32 / 38mm
Hose connection    1", 1 ¼", 1 ½"
Filter intake surface    1000cm2
Max. coarse debris displacement    11mm
OASE Control connection    Yes
Electronic adjustment    Yes

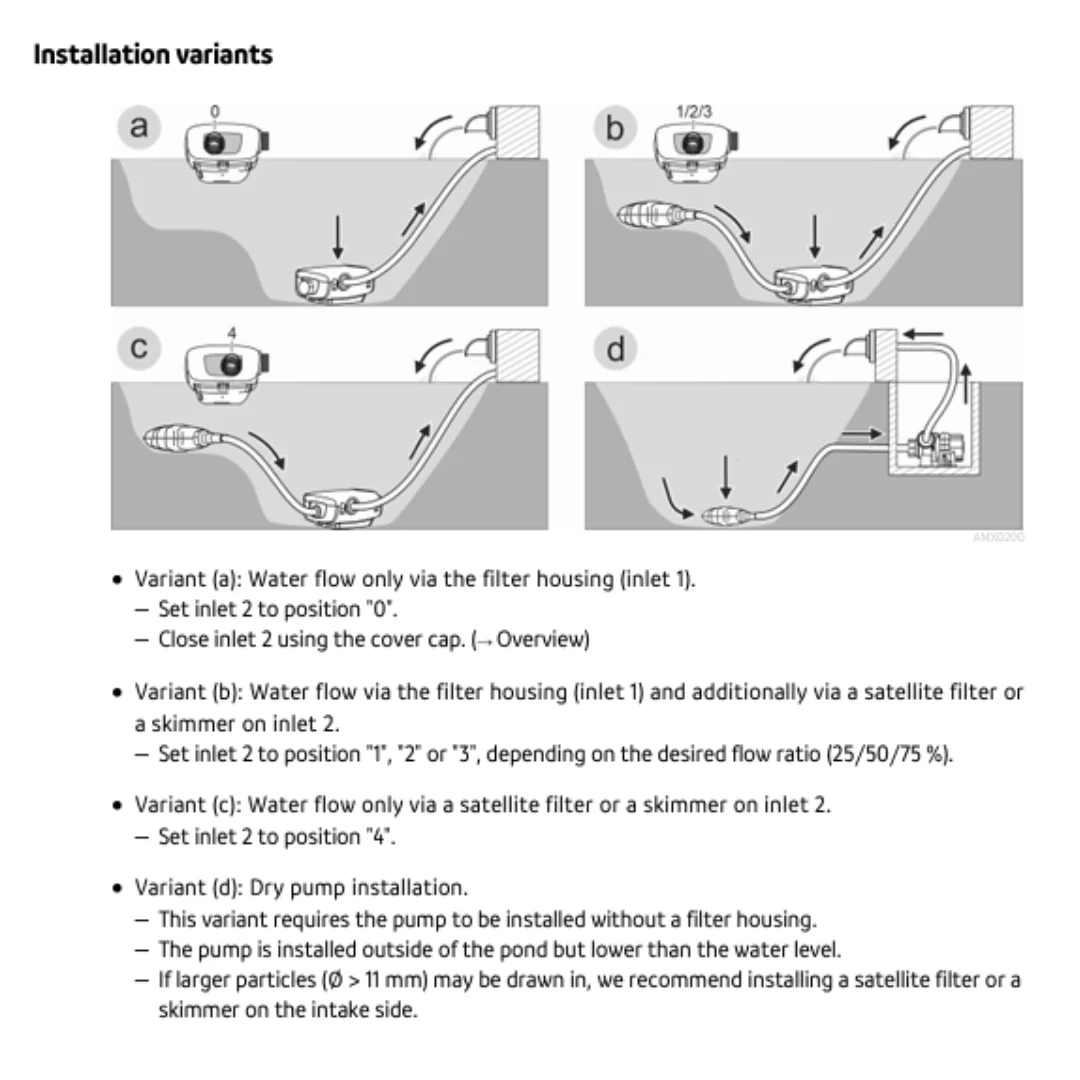

Setup type    Can be set up underwater & dry installed



AquaMax Eco Premium 7000

Dimensions (L x W x H)    340 x 275 x 160mm
Rated voltage    220 - 240 V / 50/60 Hz
Power consumption    12-45w
Power cable length    10.00m
Net weight    6.20kg
Guarantee    3 years
Max. flow rate    116l/min
Max. flow rate    7000l/h
Max. head height, metres    4.00m
Pressure-side connection    G 2
Suction-side connection    G 2
Hose connection    25 / 32 / 38mm
Hose connection    1", 1 ¼", 1 ½"
Filter intake surface    1000cm2
Max. coarse debris displacement    11mm
OASE Control connection    Yes
Electronic adjustment    Yes
Setup type    Can be set up underwater & dry installed



AquaMax Eco Premium 9000

Dimensions (L x W x H)    340 x 275 x 160mm
Rated voltage    220 - 240 V / 50/60 Hz
Power consumption    14-60w
Power cable length    10.00m
Net weight    6.20kg
Guarantee    3 years
Max. flow rate    150l/min
Max. flow rate    9000l/h
Max. head height, metres    4.50m
Pressure-side connection    G 2
Suction-side connection    G 2
Hose connection    25 / 32 / 38 / 50mm
Hose connection    1", 1 ¼", 1 ½", 2"
Filter intake surface    1000cm2
Max. coarse debris displacement    11mm
OASE Control connection    Yes
Electronic adjustment    Yes
Setup type    Can be set up underwater & dry installed



AquaMax Eco Premium 13000

Dimensions (L x W x H)    340 x 275 x 160mm
Rated voltage    220 - 240 V / 50/60 Hz
Power consumption    16-100w
Power cable length    10.00m
Net weight    6.90kg
Guarantee    3 years
Max. flow rate    216l/min
Max. flow rate    13000l/h
Max. head height, metres    5.00m
Pressure-side connection    G 2
Suction-side connection    G 2
Hose connection    25 / 32 / 38 / 50mm
Hose connection    1", 1 ¼", 1 ½", 2"
Filter intake surface    1000cm2
Max. coarse debris displacement    11mm
OASE Control connection    Yes
Electronic adjustment    Yes
Setup type    Can be set up underwater & dry installed



AquaMax Eco Premium 17000

Dimensions (L x W x H)    340 x 275 x 160mm
Rated voltage    220 - 240 V / 50/60 Hz
Power consumption    18-140w
Power cable length    10.00m
Net weight    6.90kg
Guarantee    3 years
Max. flow rate    283l/min
Max. flow rate    17000l/h
Max. head height, metres    5.50m
Pressure-side connection    G 2
Suction-side connection    G 2
Hose connection    25 / 32 / 38 / 50mm
Hose connection    1", 1 ¼", 1 ½", 2"
Filter intake surface    1000cm2
Max. coarse debris displacement    11mm
OASE Control connection    Yes
Electronic adjustment    Yes
Setup type    Can be set up underwater & dry installed



AquaMax Eco Premium 21000

Dimensions (L x W x H)    340 x 275 x 160mm
Rated voltage    220 - 240 V / 50/60 Hz
Power consumption    20-180w
Power cable length    10.00m
Net weight    6.90kg
Guarantee    3 years
Max. flow rate    350l/min
Max. flow rate    21000l/h
Max. head height, metres    6.00m
Pressure-side connection    G 2
Suction-side connection    G 2
Hose connection    25 / 32 / 38 / 50mm
Hose connection    1", 1 ¼", 1 ½", 2"
Filter intake surface    1000cm2
Max. coarse debris displacement    11mm
OASE Control connection    Yes
Electronic adjustment    Yes
Setup type    Can be set up underwater & dry installed
