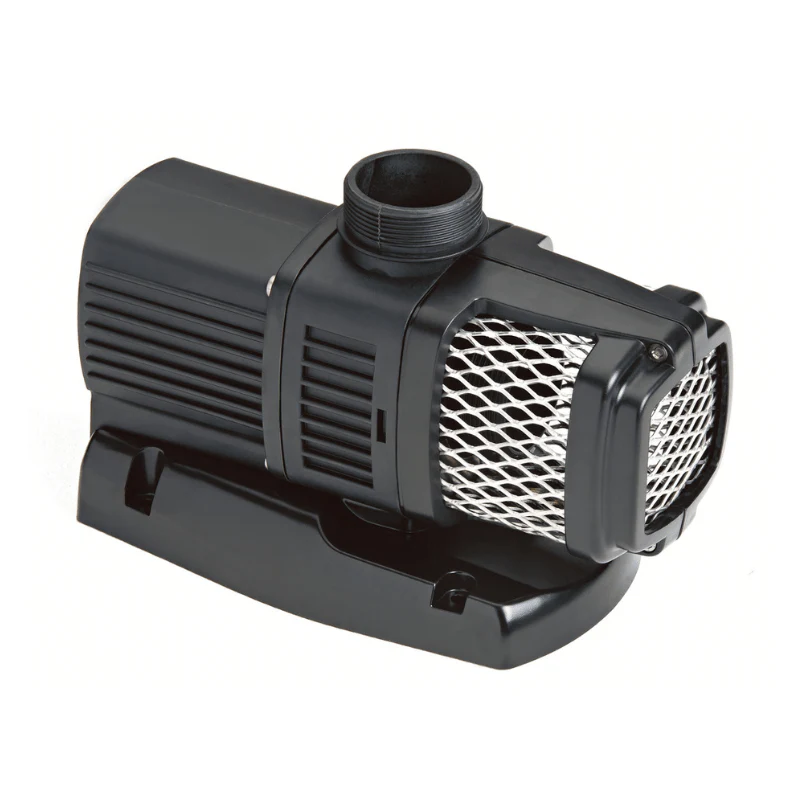

AquaMax Eco Gravity 10000-20000

The AquaMax Gravity Eco Pond Pump range from Oase reliably delivers large flow rates with extreme energy efficiency. Available in 3 different models 10,000, 15,000 and 20,000 litres per hour, these high performance pumps have been designed with large gravity filter systems in mind.

The Oase AquaMax Gravity Eco Pumps deliver unparalleled performance thanks to new and improved electric motors and flow optimised impeller design. This range of high performance pumps are suitable for both underwater and dry installation whilst the removable base allows for easy installation in confined spaces. The high quality stainless steel strainer basket allows displacement of coarse particles up to 6mm in size with no problems.

Features:

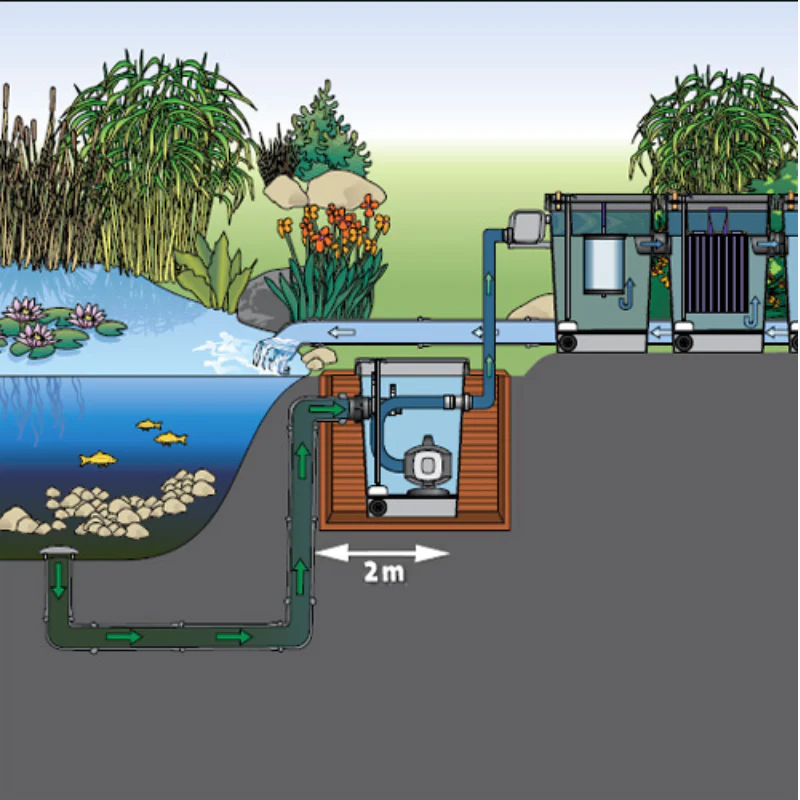

• Perfectly matched to the requirements of gravitation filter systems
• High performance with minimal space requirements

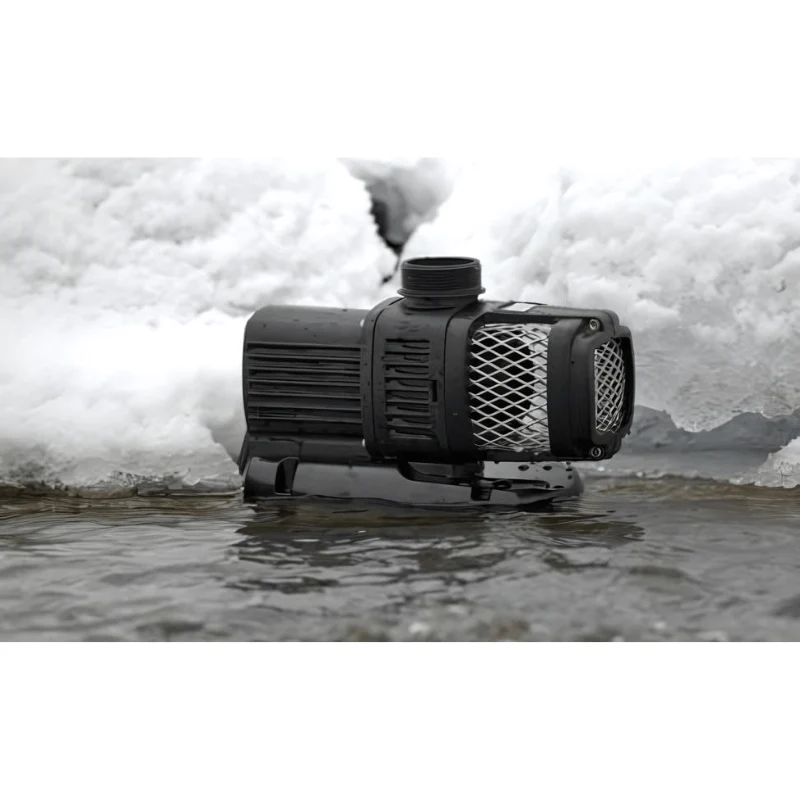

• Winter-proof to –20 °C

Characteristics:

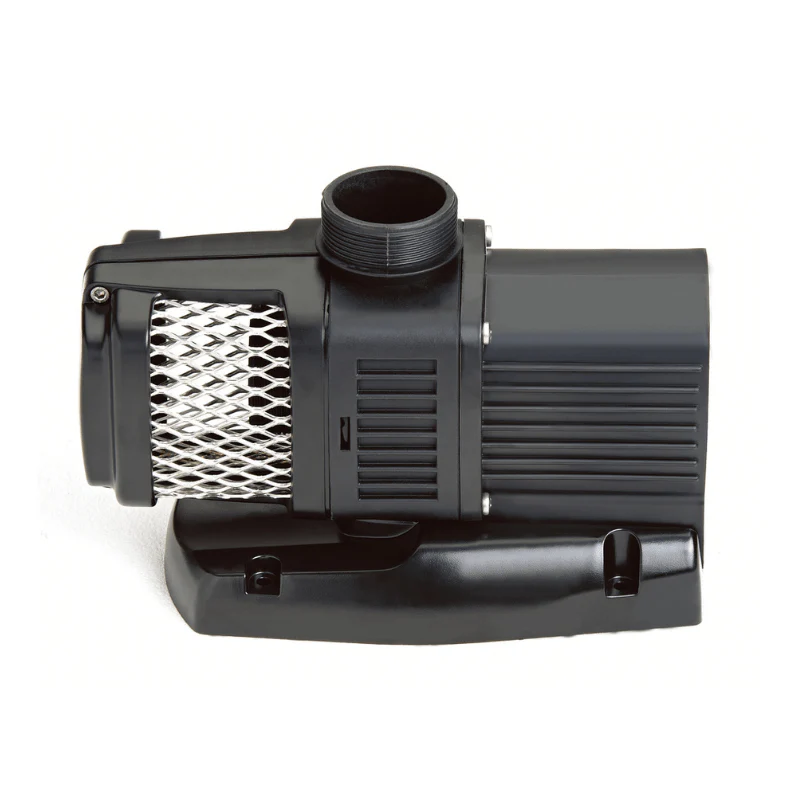

• EXTRA-STABLE: Thanks to the removable mount and stand

• SWIMMING AND NATURAL POOLS: Possible to use in an external pump vault

• WINTER-PROOF: This pump is damage-resistant down to temperatures as low as –20 °C

• FOR UNIVERSAL USE: Can be set up underwater or in dry conditions

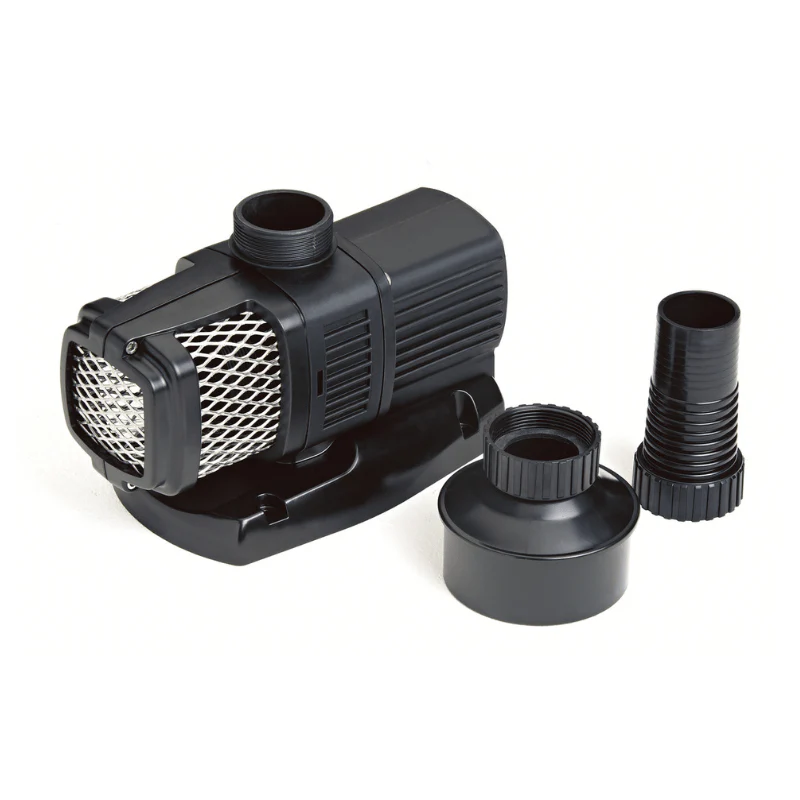

• ADAPTER INCLUDED: Connection set for hose (2"/DA 63) and pipe connection (DN 75/DN 110) are included in the scope of delivery

• ENVIRONMENTAL FUNCTION CONTROL: Pump blockage and dry run protection thanks to EFC by OASE

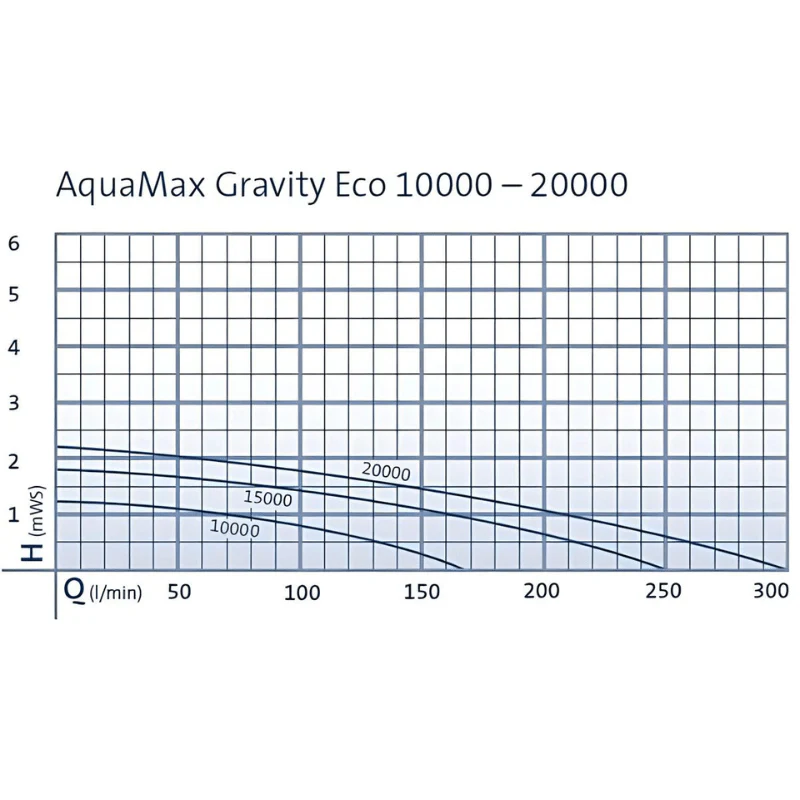

Technical Data

AquaMax Eco Gravity 10000

Dimensions (L x W x H)    mm    272 x 142 x 182
Rated voltage        220 - 240 V / 50 Hz
Power consumption    W    65
Power cable length    m    10.00
Net weight    kg    4.20
Guarantee    Years    3
Max. flow rate    l/min    166
Max. flow rate    l/h    10000
Max. head height, metres    m    1.30
Pressure-side connection        G 2
Suction-side connection        G 2
Hose connection    mm    50
Hose connection        2", DA 63, DN 75, DN 110
Filter intake surface    cm2    200
Max. coarse debris displacement    mm    6
Electronic adjustment        No
Setup type        Can be set up underwater & dry installed

AquaMax Eco Gravity 15000

Dimensions (L x W x H)    mm    272 x 142 x 182
Rated voltage        220 - 240 V / 50 Hz
Power consumption    W    85
Power cable length    m    10.00
Net weight    kg    4.50
Guarantee   Years    3
Max. flow rate    l/min    250
Max. flow rate    l/h    15000
Max. head height, metres    m    1.80
Pressure-side connection        G 2
Suction-side connection        G 2
Hose connection    mm    50
Hose connection        2", DA 63, DN 75, DN 110
Filter intake surface    cm2    200
Max. coarse debris displacement    mm    6
Electronic adjustment        No
Setup type        Can be set up underwater & dry installed

AquaMax Eco Gravity 20000

Dimensions (L x W x H)    mm    272 x 142 x 182
Rated voltage        220 - 240 V / 50 Hz
Power consumption    W    120
Power cable length    m    10.00
Net weight    kg    4.50
Guarantee    Years    3
Max. flow rate    l/min    300
Max. flow rate    l/h    18000
Max. head height, metres    m    2.20
Pressure-side connection        G 2
Suction-side connection        G 2
Hose connection    mm    50
Hose connection        2", DA 63, DN 75, DN 110
Filter intake surface    cm2    200
Max. coarse debris displacement    mm    6
Electronic adjustment        No
Setup type        Can be set up underwater & dry installed
